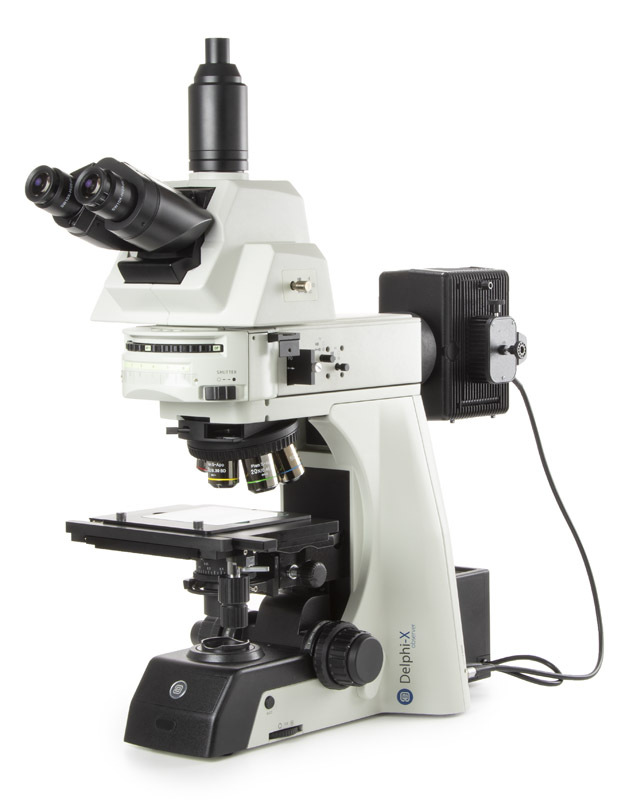

Mikroskop Metalograficzny DX.2058-PLMi (SWF 10x/22mm, plan semi apo EIS, halogen)


  • , tubusy Ø 30 mm, fotoadapter Ø 23.2 mm
  • opcjonalnie: okulary Extended Wide Field EWF 10x/22 mm, Ø 30 mm
  • ergonomiczna głowica trinokularowa wyposażona w selektor optyczny (100:0 / 80:20 / 0:100) oraz tubusy pochylane w zakresie 0 do 35°
  • regulacja dioptrii dla obu okularów (± 5), regulacja odległości międzyźrenicowej w zakresie 47 do 78 mm
  • sześciopozycyjny (łożyskowany), odwrócony (mocowania 25mm)

The enhanced infinity system (EIS) of the Delphi-X Observer™
  • consists of Super wide field SFWF 10x25 mm eyepieces, high numerical aperture 45 mm parafocal objectives and a 200 mm focal length tube lens. The 200 mm focal length tube lens reduces the angle of the light rays passing through the optics and as a direct result improving significantly the chromatic aberration corrections and contrast. The objectives with larger diameter enable much higher numerical apertures improving the overall resolving power of the optical system.
  • For all these reasons the Delphi-X Observer™ offers superior optical performance for the most demanding applications

:
  • Plan Semi-Apochromatic EIS 5x/0.15, 10x/0.30 and 20x/0.45 objectives (Infinity corrected)
  • Plan Apochromatic EIS 50x/0.80 objective (Infinity corrected)
  • Plan Apochromatic EIS 100x/0.90 objective (Infinity corrected) - optional
  • All objectives are 45 mm parafocal and have a M25 mm mounting thread
Differential interference Contrast (DIC) - optional
  • NORMARSKI DIC (optional) With the redesign of the DIC-module visualization of height differences which normally cannot be displayed using brightfield techniques has greatly improved. These relief like images are ideal for surface inspections of wafers, LCD screens etc

Stolik
duży 215 x 170 mm ze zintegrowaym mniejszym stolikiem 105 x 105 mm (praworęczny)
wysokość stolika może być dostosowana do próbki, stolik można obniżyć o 1 cal przy pomocy przejściówki DX.9887 mocowanej do uchwytu obiektywu (przejściówka obniża wysokość misy rewolwerowej o 40 mm, co umożliwia korzystanie z mikroskopu przy obniżonym stoliku; podniesienie punktu widzenia o 25,4mm można wykonać jednym ruchem)

Coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 μm per rotation, total travel range is approximately 35 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control. The focusing knobs can be switched from left to right according to the user’s preference
In height adjustable long working distance N.A. 0.65 condenser (10.2 mm) with numerical aperture identification marks allows easy setting
Epi and Diascopic intensity adjustable 100 W halogen illumination with internal 100-240 Vac power supply. The diascopic halogen illumination comes with two
push-in/push-out neutral density filters for smooth attenuation of the light intensity for all kinds of samples
w komplecie analizator i polaryzator (do umieszczenia w szczelinach oświetlacza Epi w celu uzyskania wysokiej jakości obrazów w świetle spolaryzowanym)

obrotowa kaseta zapewnia szybkie i bezproblemowe przełączanie pomiędzy obserwacją w ciemnym polu, jasnym polu oraz kontraście fazowym


zapytanie o cenę
