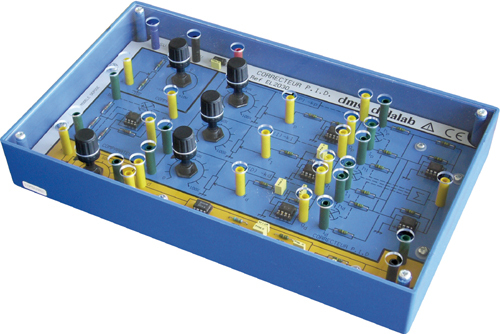

Studium Regulatora PID - Zestaw Edukacyjny PED020300

• Proportional branch, potentiometer gain adjustment,


• Integral branch, potentiometer gain adjustment,


• Derivative branch, potentiometer gain adjustment,


• Set value generator function by potentiometer,


• Possible set value control by external LF generator,


• Adder device constituted of 3 independent comparators,
  followed by one 3 inputs adder circuit.
