SPEKTROMETRY ŚWIATŁOWODOWE
więcej informacji - kliknij na obrazek
Specyfikacja Techniczna:

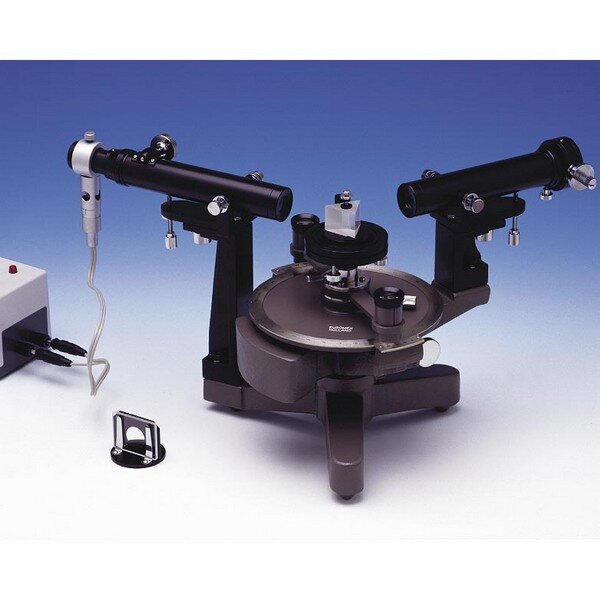

Table spectrometer for measurement of a prism in determing the refractive index, measuring the refractive angle, measuring the angle of minimum deviation and the measurement of dispersion.
This spectrometer on large tripod stand, to use for the measurement of the angle of a prism and for determining the refractive index of transparent solids or liquids.
The instrument consists of collimator F=160 mm, 17 mm diameter and adjustable slit 0-10 mm, V-shaped field adjustment wedge. Telescope with rack and pinion adjustment, round disc scale 180 mm diameter, engraved in 360 degrees, divided in 0.5 degrees, with double vernier gradation. Two rotatable magnifiers for exact reading. Objecstage 70 mm diameter, rotatable and with height adjustment, with holder for glass plates and prism, with glass plate and flint glass prism 33 x 33 x 22 mm. Complete with illumination and transformer for 220 volt operation.
0.00 zł(bez VAT-u)
Specyfikacja Techniczna:
- stalowa podstawa, srednica podstawki 150 mm, skala 0 -360° z noniuszem
- dlugosc tuby kolimatora: 160 mm
- dlugosc ogniskowa (soczewka achromatyczna): ~175 mm
- dlugosc tuby teleskopu: 185 mm
- dlugosc ogniskowa (soczewka achromatyczna): ~175 mm
- pryzmat 50 x 50 mm, wspólczynnik zalamania swiatla 1.51
- lampa jarzeniowo-rteciowa jako zrodlo swiatla (opcjpnalnie)
cena brutto
0.00 zł(bez VAT-u)
Specyfikacja Techniczna:

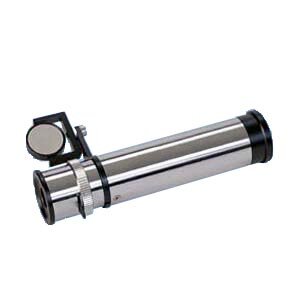

Hand spectroscope with adjustable slit, comparison prism, mirror, 5 glass cuvettes and wavelength scale 400 - 700 nm with 589 nm indication. Divisions 10 nm
direct vision type, adjustable eyelens, adjustable
slit 0 - 1 mm, angle dispersion C - F 7°, linear
dispersion 60 mm, comparison prism, mirror
5 glass cuvettes, wavelength scale 400 - 700 nm
0.00 zł(bez VAT-u)
Specyfikacja Techniczna:

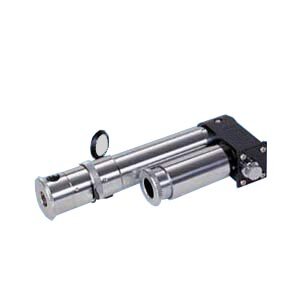

Hand spectroscope with adjustable slit and comparison prism, mirror and 5 glass cuvettes, direct vision type
adjustable eyelens, adjustable slit 0 - 1 mm,
angle dispersion C - F 7°, linear dispersion 60 mm, comparison prism for comparison between products, mirror, 5 glass cuvettes (test tubes)
0.00 zł(bez VAT-u)
Specyfikacja Techniczna:

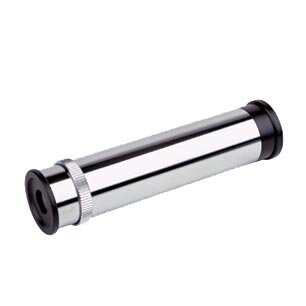

Hand spectroscope with adjustable slit from 0 to 1 mm
direct vision type, adjustable eyelens, angle dispersion C - F 7°, linear dispersion 60 mm
0.00 zł(bez VAT-u)
Specyfikacja Techniczna:

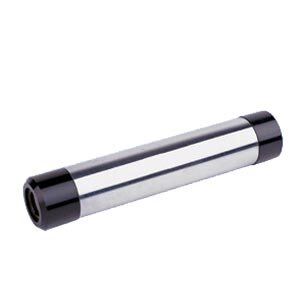

Hand spectroscope with fixed slit, direct vision type
adjustable eyelens, angle dispersion C - F 6°
linear dispersion 40 mm
cena brutto
0.00 zł(bez VAT-u)
